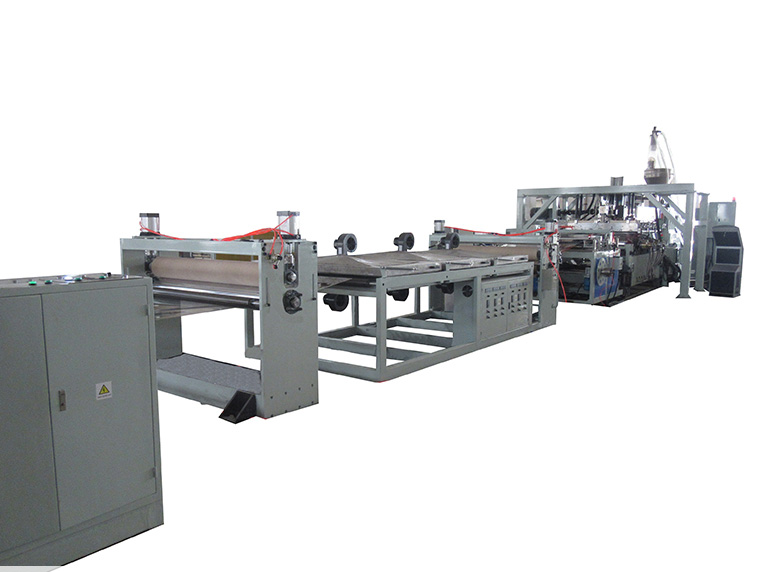

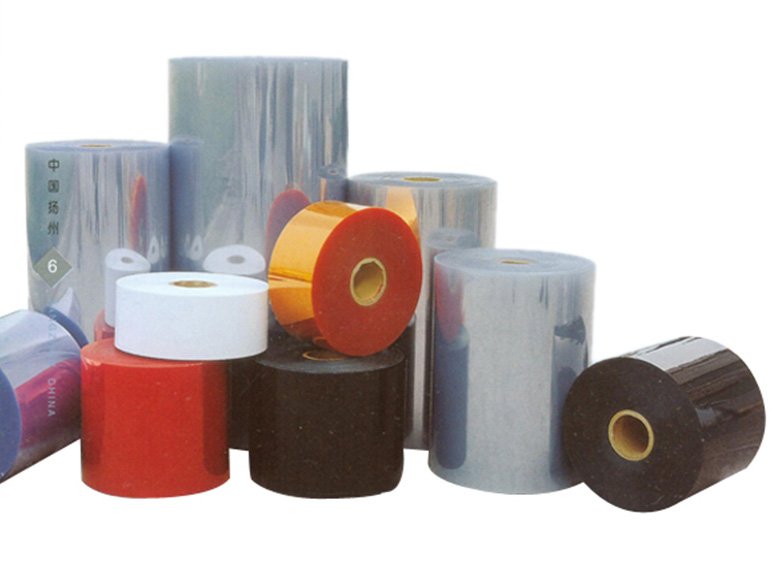

PET sheet production line equipment is divided into three types: Crystallizing and drying PET sheet production line single screw, Parallel twin-screw vent-free crystal drying PET sheet production line, Venting single screw –free crystal drying PET sheet production line. It can produce single, multi-layer sheet by multi-extruder co-extrusion. Processed materials can be APET, PETG, CPET etc ,the Final Products is Widely used in thermal forming, printing, metal packaging.
*With precision dispenser, evenly stratified and layers adjustable ratio.
*Horizontal tablet structure, operation and maintenance more convenient.
*Roll independent power, line speed and extruder speed synchronization control.
*The machine adopts PLC control, parameter setting, data and the feedback and alarm automation.
| Model | SHJ75/SHJ85 | SJ-120/90/65 |
| Material | APET.PETG.CPET | APET.PETG.CPET |
| Products Width | 650mm-1500mm | 650mm-1500mm |
| Products Thickness | 0.15-2.0mm | 0.15-2.0mm |
| Extruder Specification | Φ71.5 Φ81.5 | Φ120/Φ90/65Φ |
| Capacity（Max.） | 450-600kg/h | 450-600kg/h |
