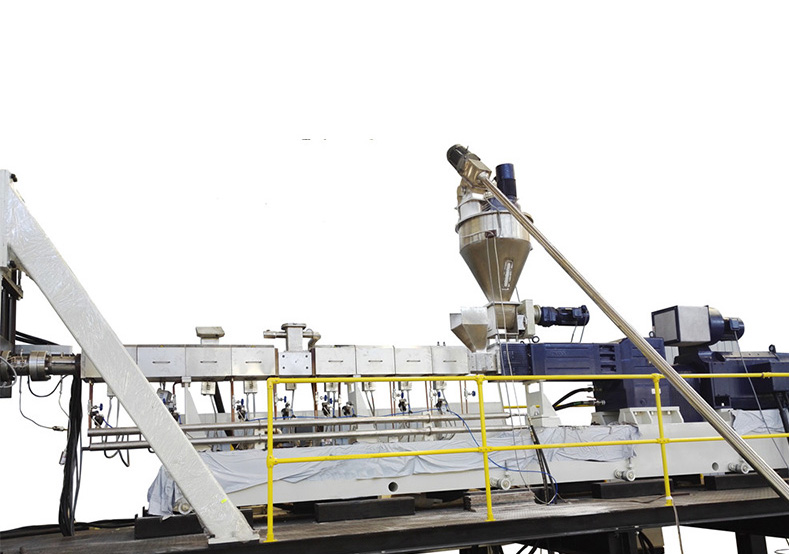

PVB Intermediate Film Production Line

Company can provide salivate process of extrusion production line for customers, can also provide a roll process of extrusion production lines, both control of the machine adopts imported PLC programmable control system, to match the color LCD touch screen, which can realize the operation parameters of display monitor, alarm, interlock, fault diagnosis and printout.

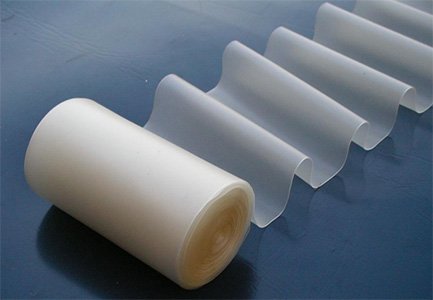

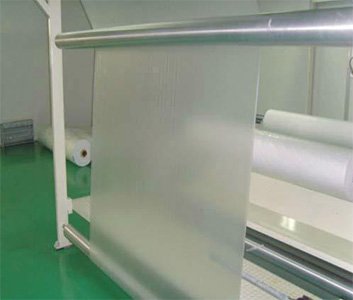

Products type: Intermediate PVB film

product thickness:0.38-1.54mm

product width:650mm-3450mm

Model and Specification

Model	Matched Extruder	Material	Main Motor Power(KW)	Product Thickness(mm)	Product Width(mm)	Output(kg/h)
PVB1200	TDS 35 & TDS 75	PVB	11 & 90	0.38-1.52	1200	200
WE-PVB2000	TDS 150	PVB	about 150	0.38-1.52	2000	400
WE-PVB2500	TDS 95 & TDS 65	PVB	about 300	0.38-1.52	2500	600
WE-PVB2500	TDS 95 & TDS 135	PVB	about 450	0.38-1.52	3400	1200
