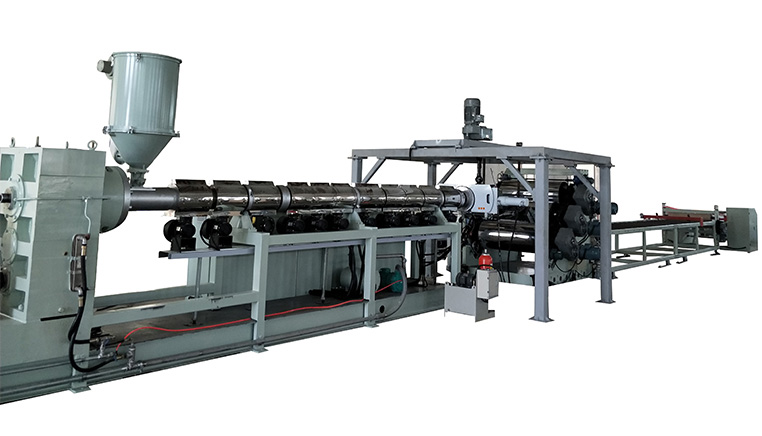

PP, PS, ABS Plastic Sheet Production Line

Application:

The plastic sheet extrusion line is specially designed for the extrusion of single layer or multi-layer sheet of PC or PMMA.It is also suitable for the sheet extrusion of PE, PP, PS, ABS and other materials.

The international famous components, combines with decades of year's experience in the plastic machinery, making the whole line more steady and reliable.

Main Technical Parameter:

Screw drive motor power(kw)	30-315
Screw diamater(mm)	45-150
Screw L/D ratio(mm)	33/1-38/1
Screw Max. Speed(rpm)	110
Max. Extrusion(kg/h)	30-60
Max. production line speed(m/min)	10
Products width(mm)	600-2500
Products thickness(mm)	0.6-20
